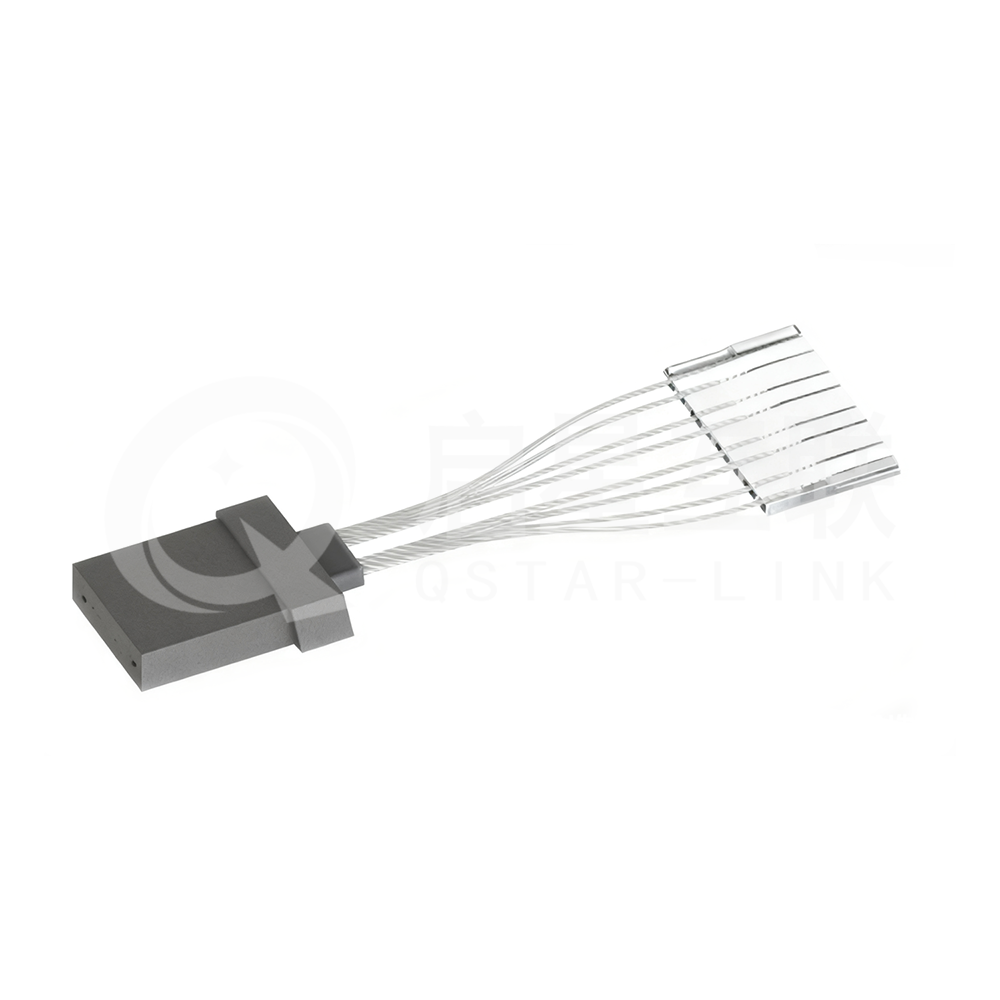

Connector A: MT Ferrule with guide pin

Connector B: FA, customized size/angle available

Fiber shape: ribbon/single fibers

Fiber count: 2F/4F/8F/12F/16F/24F

Fiber type: OM3, OM4; OM1, OM2; OS1,OS2; PM; OM5；

Length: 20~100mm, customized length available

Length tolerance: +500um/-0um

GR-1435, GR-1221 compliant

Transmission mode: multi-channel serial and parallel transmission mode

High accuracy,

Support：12 x 1.25~3.5G, 2X40G(4x10G), 2X100G(4x25G), 10X10G, 12x10G, 4x32G，8X10G，8X25G，8X50G，8X100G

MT IL ≤0.60 dB  typical 0.20dB

MT RL≥20dB

Passive optical interconnect jumpers can be deployed in QSFP, QSFP28, QSFP-DD, Micro QSFP, CXP, CFP, CDFP, and any parallel optical transceiver modules, supporting various network types, including Ethernet optical network, Infiniband optical network, and Fiber Channel network.
