This transceiver is specified as ESD threshold 1KV for high speed data pins and 2KV for all others electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
Part Number | ProductDescription |

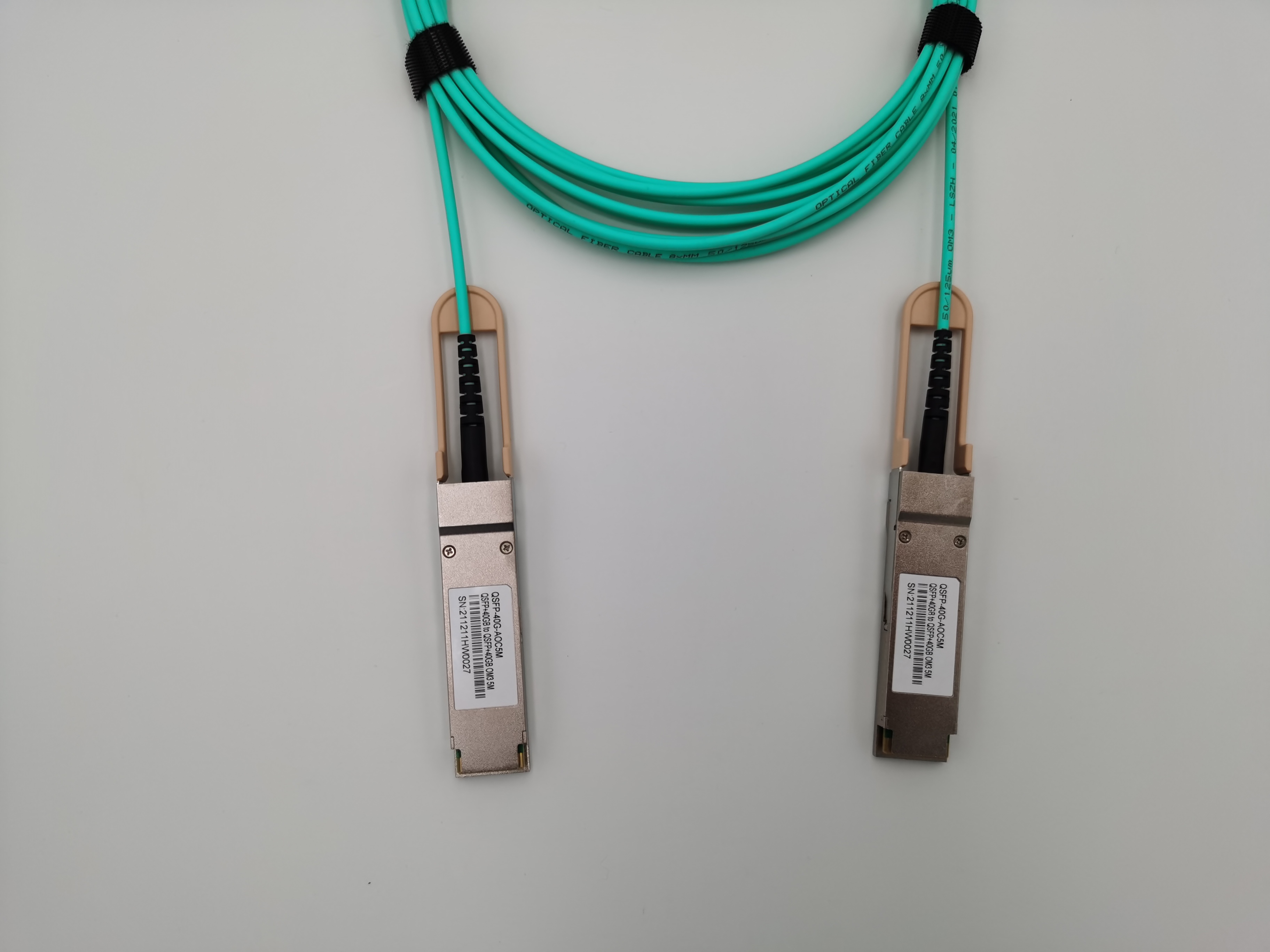

RQS-40G-AOCXXC | 40Gb/s QSFP+ Active Optical Cable |
Notes:
where "xx" denotes cable length in meters. Examples are as follows:
xx = 03 for 3m, xx = 10 for 10m,xx = 50 for 50m,xx = A0 for 100m
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by DEEP WORTH before they become applicable to any particular order or contract. In accordance with the
DEEP WORTH policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of DEEP WORTH or others. Further details are available from any DEEP WORTH sales representative.
Parameter | Symbol | Min | Max | Unit | Note |
Storage Temperature | TST | -40 | 85 | degC | |
Relative Humidity(non-condensing) | RH | 0 | 85 | % | |
Operating Case Temperature | TOPC | 0 | 70 | degC | |
Supply Voltage | VCC | -0.3 | 3.6 | V | |
Input Voltage | Vin | -0.3 | Vcc+0.3 | V |
Parameter | Symbol | Min | Typical | Max | Unit |
Operating Case Temperature | TOPC | 0 | 70 | degC | |
Power Supply Voltage | VCC | 3.13 | 3.3 | 3.47 | V |
Power Consumption | - | 1.5 | W | ||
Data Rate | DR | 1 | 10.3 | 11.3 | Gbps |
Data Speed Tolerance | ∆DR | -100 | +100 | ppm | |
Link Distance with OM3 fiber | D | 0 | 100 | m |
Parameter | Symbol | Min | Typical | Max | Unit |
Differential input impedance | Zin | 90 | 100 | 110 | ohm |
Differential Output impedance | Zout | 90 | 100 | 110 | ohm |
Differential input voltage amplitude | ΔVin | 300 | 1100 | mVp-p | |
Differential output voltage amplitude | ΔVout | 500 | 800 | mVp-p | |
Bit Error Rate | BR | E-12 | |||
Input Logic Level High | VIH | 2.0 | VCC | V | |
Input Logic Level Low | VIL | 0 | 0.8 | V | |
Output Logic Level High | VOH | VCC-0.5 | VCC | V | |
Output Logic Level Low | VOL | 0 | 0.4 | V | |
●Four-channel full-duplex active optical cable
●Transmission data rate up to 11.3Gbit/s per channel
●Reliable VCSEL array technology using multimode fiber
●Available in standard lengthsof 3, 5, 10, 15, 20, 30, 50,100m
●Low power consumption <1.5W
●Operating case temperature 0°C to +70°C
●3.3V power supply voltage
●RoHS 6 compliant
●Hot Pluggable QSFP form factor
